Carbonated Drink Line
 | Bottled carbonated drink production and filling lineWe provide high-quality soda and carbonated beverage filling machines for efficient and reliable production. Our automatic soda filling machines support PET bottles, glass bottles, and cans, ensuring accurate filling and stable carbonation for sodas and carbonated water. |

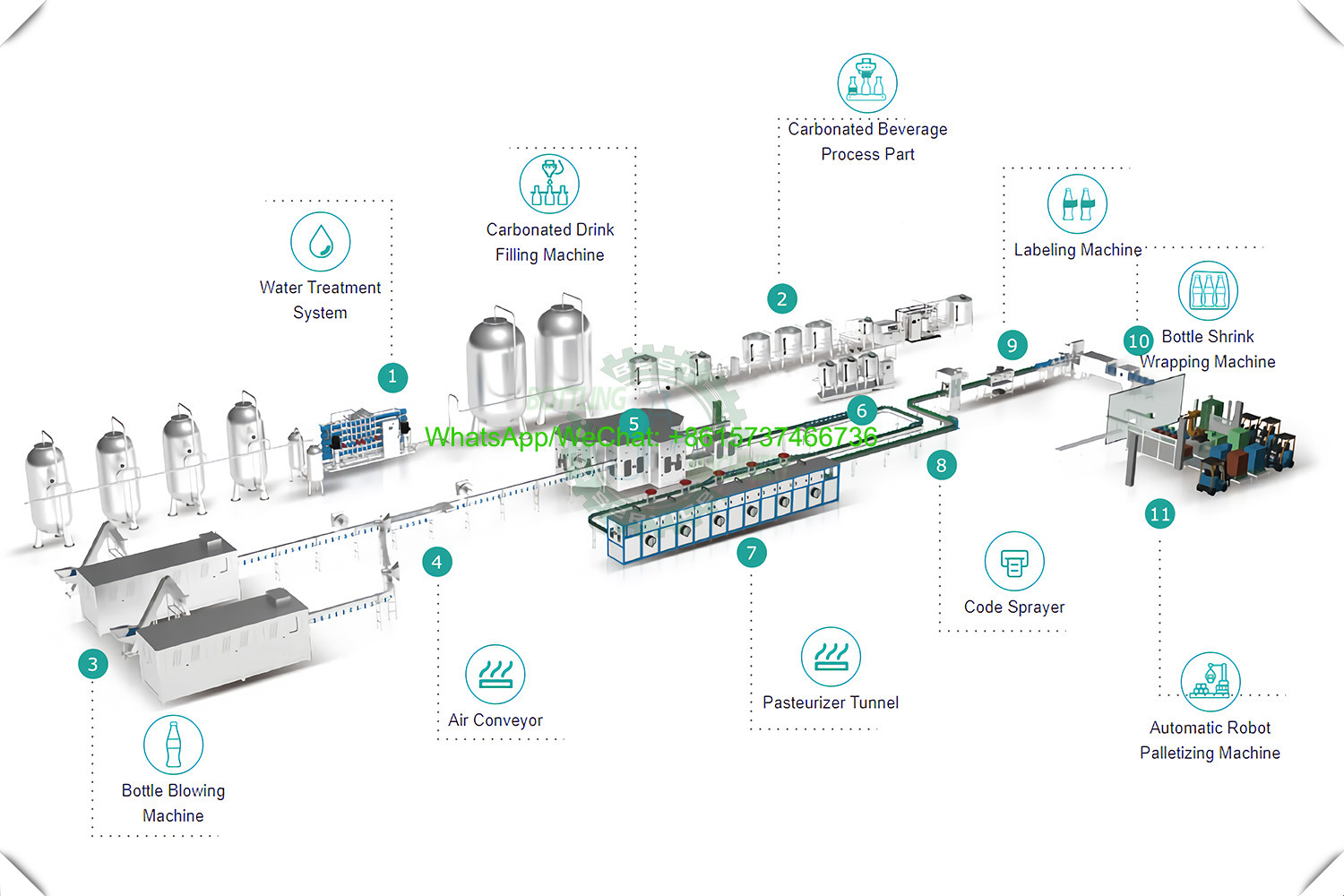

Complete Carbonated Beverage Production Line:
Our integrated carbonated drink production line provides a comprehensive solution for beverage manufacturing. The system primarily consists of the carbonated/soft drink processing section, a water treatment system, a bottle blow molding machine, a combined bottle washing-filling-capping machine, a bottle warmer, a bottle blow dryer, a labeling machine, a code printer, and a film shrink wrapping machine.

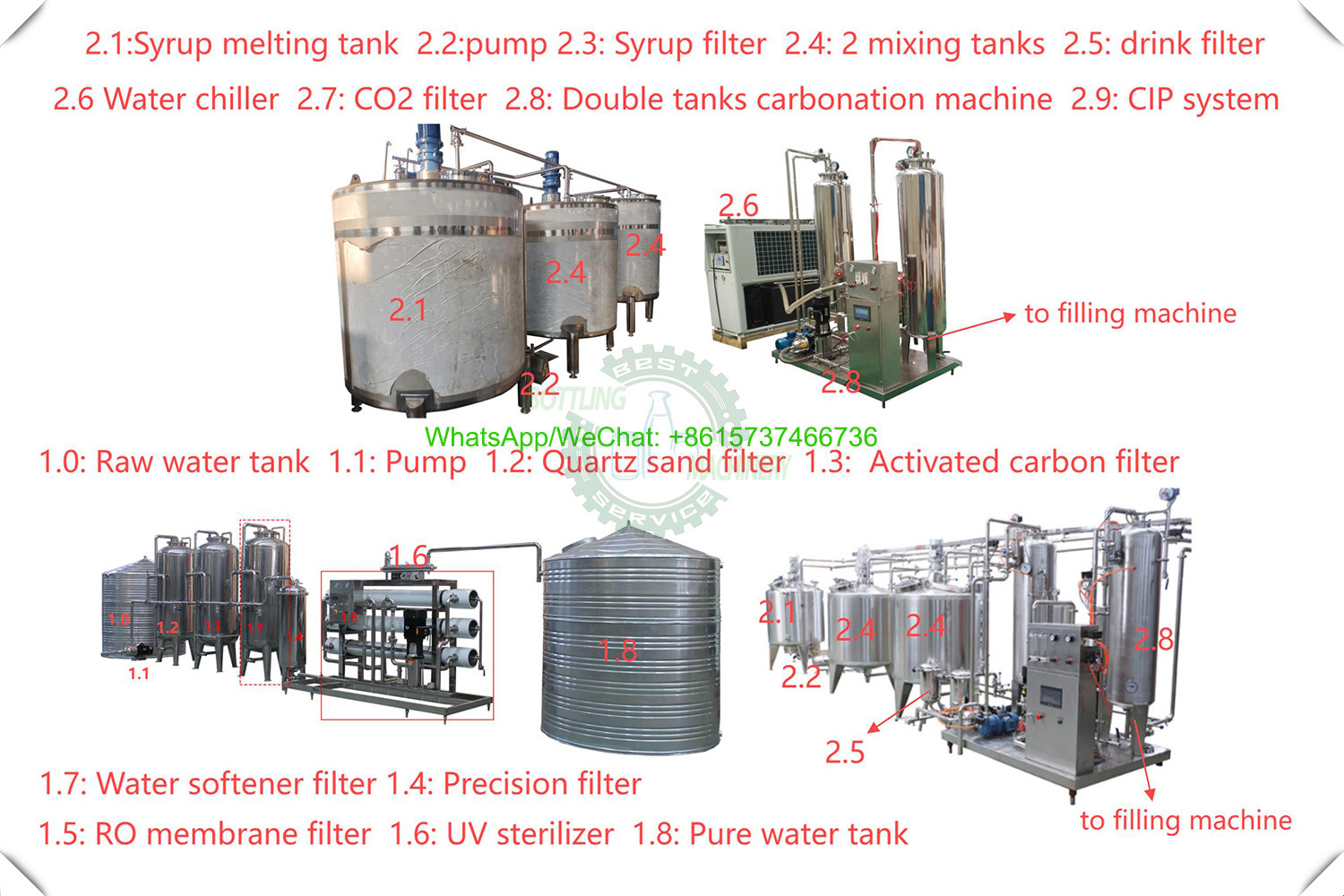

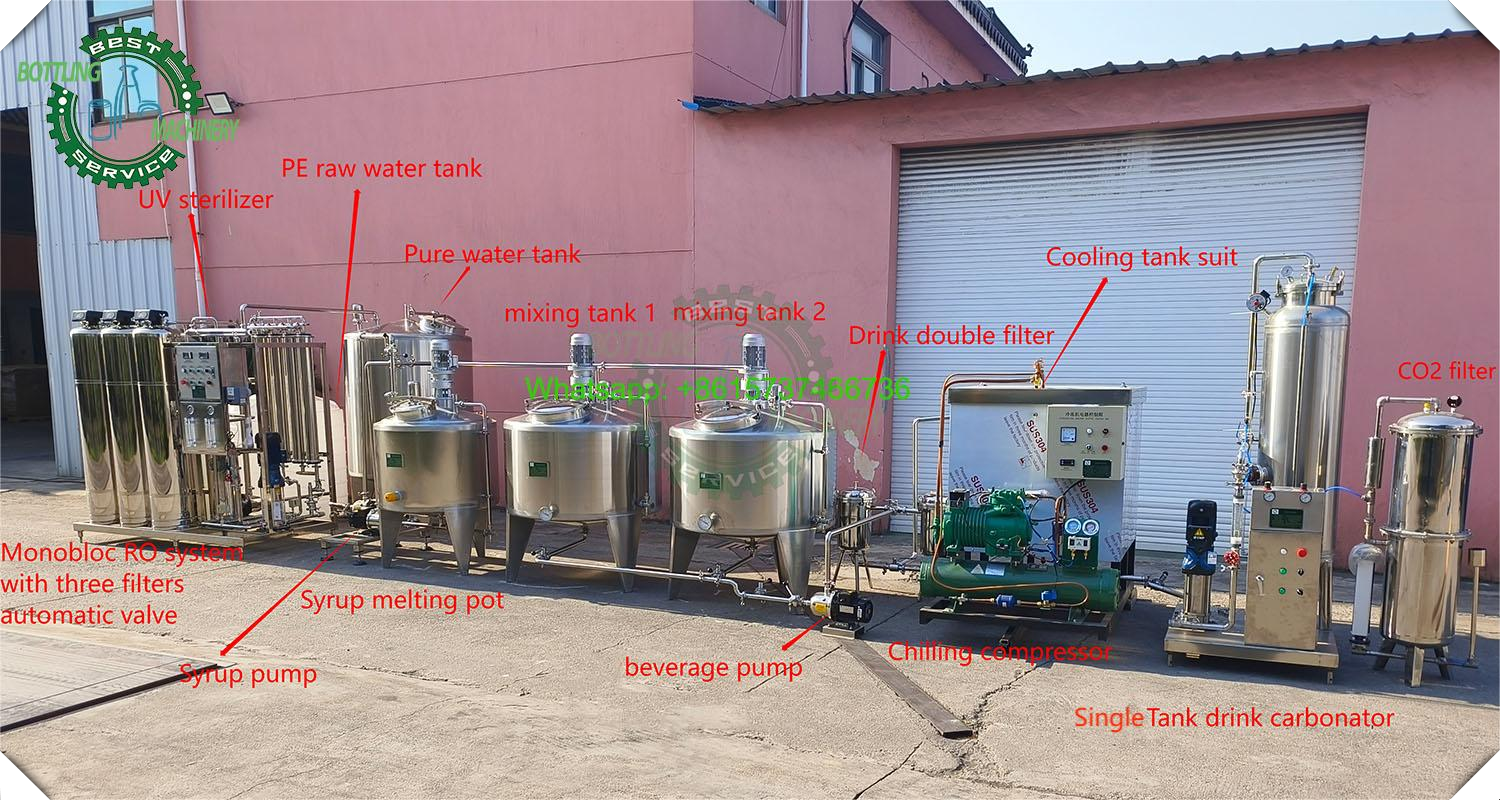

The core beverage processing section includes the following key equipment:
1. Syrup Melting Tank
Function: Heats and dissolves sugar or sweeteners to form a uniform syrup base. It also facilitates the integration of flavor concentrates, colors, and preservatives.
2. Cooling Tank
Function: Rapidly chills the prepared syrup to a low temperature (typically 1–5°C), ensuring product stability and inhibiting microbial growth prior to carbonation.
3. Mixing Tank (Batching Tank)
Function: Precisely combines chilled syrup, treated water, and CO₂ in controlled ratios to create the final beverage formulation, guaranteeing batch homogeneity.
4. Filter
Function: Ensures product clarity and consistency by removing particulate impurities, such as undissolved solids. Common types include cartridge and membrane filters.
5. CO₂ Filter
Function: Purifies carbon dioxide gas by eliminating moisture, oil, and odors, delivering food-grade CO₂ essential for high-quality carbonation.
6. Water Chiller
Function: Cools water to near-freezing temperatures (0–4°C), significantly enhancing CO₂ solubility for optimal carbonation efficiency and fizziness.
7. Carbonator
Function: The key component for effervescence. It injects purified CO₂ under pressure into the chilled liquid, dissolving the gas to achieve the desired level of carbonation.
8. CIP System (Clean-in-Place)
Function: Automates internal cleaning and sanitization of tanks, pipelines, and equipment without disassembly. This ensures strict hygiene, prevents cross-contamination, and maintains production efficiency.
Please check the video of bottled carbonated drink production and filling line: https://youtu.be/CgGAyvpPVuo
Water treatment encompasses a wide range of equipment tailored to various needs. Available systems include reverse osmosis (RO) units, ultrafiltration setups, bipolar RO systems, RO combined with EDI electrolysis, RO with alkaline water electrolysis elements, and seawater desalination plants. For standard bottled water filling production lines, the installation of a reverse osmosis water treatment system is the most common and effective solution.
Working Principle: Reverse Osmosis (RO)
The core RO technology utilizes high pressure to push water through a semi-permeable membrane. This process effectively removes dissolved salts, organic matter, bacteria, viruses, and other contaminants, resulting in the production of high-purity water.
System Components
A complete RO system is typically comprised of:
Raw Water Tank
Quartz Sand Filter
Activated Carbon Filter
Water Softener
Precision Filter
Reverse Osmosis Membrane Module
UV Sterilizer
Ozone Generator & Mixing Tower
Pure Water Storage Tank
Output Capacity
Our water treatment machines offer a comprehensive range of output capacities to suit different production scales, from 250 L/H to 100 T/H. Standard models include:
250 L/H, 500 L/H, 1,000 L/H, 2,000 L/H, 3,000 L/H, 5,000 L/H, 8,000 L/H, 10 T/H, 20 T/H, 30 T/H, 50 T/H, 100 T/H.
Please take a look at the video regarding automatic bottle blow molding machine：https://youtu.be/DsRZ-b19t1E
Bottle Blowing Machine:
Working Principle
Our bottle blowing machine transforms PET preforms into finished bottles through a precision process. First, the preform is evenly heated and softened using an infrared heating system. It is then transferred to a blow mold where high-pressure air is injected, causing the preform to expand and conform perfectly to the mold's inner contours. After a controlled cooling and shaping phase, a durable, high-quality bottle is produced.
Core Components
The machine integrates several key systems for reliable operation:
Preform Heating & Conveying System
Blow Mold
Stretch Blow Molding Unit
Cooling System (with Chiller)
Compressed Air System (Air Compressor, Storage Tank, Refrigerated Dryer, and Air Filter)
Custom Bottle Mold Design
We specialize in custom mold design, turning your unique bottle concept into reality. Simply by changing the mold, a single machine can produce a diverse range of bottle shapes and sizes, offering exceptional production flexibility.
Available Models
We provide a comprehensive range of machines to meet various production needs:
Standard Capacity Machines: For bottles from 10ml to 2000ml.
Large Capacity Machines: For containers ranging from 3 to 20 liters.
Automation Options: Both semi-automatic and fully automatic models are available.
Seamless Line Integration
Our automatic bottle blowing machine is designed for efficient production line integration. It can be connected to the filling machine via air conveyance. Additionally, a bottle unscrambler can be linked to the filler, ensuring a smooth, continuous, and automated production flow from blowing to filling.
Please check the video of Plastic bottle carbonated beverage filling machine: https://youtu.be/sVRO7IkUDno

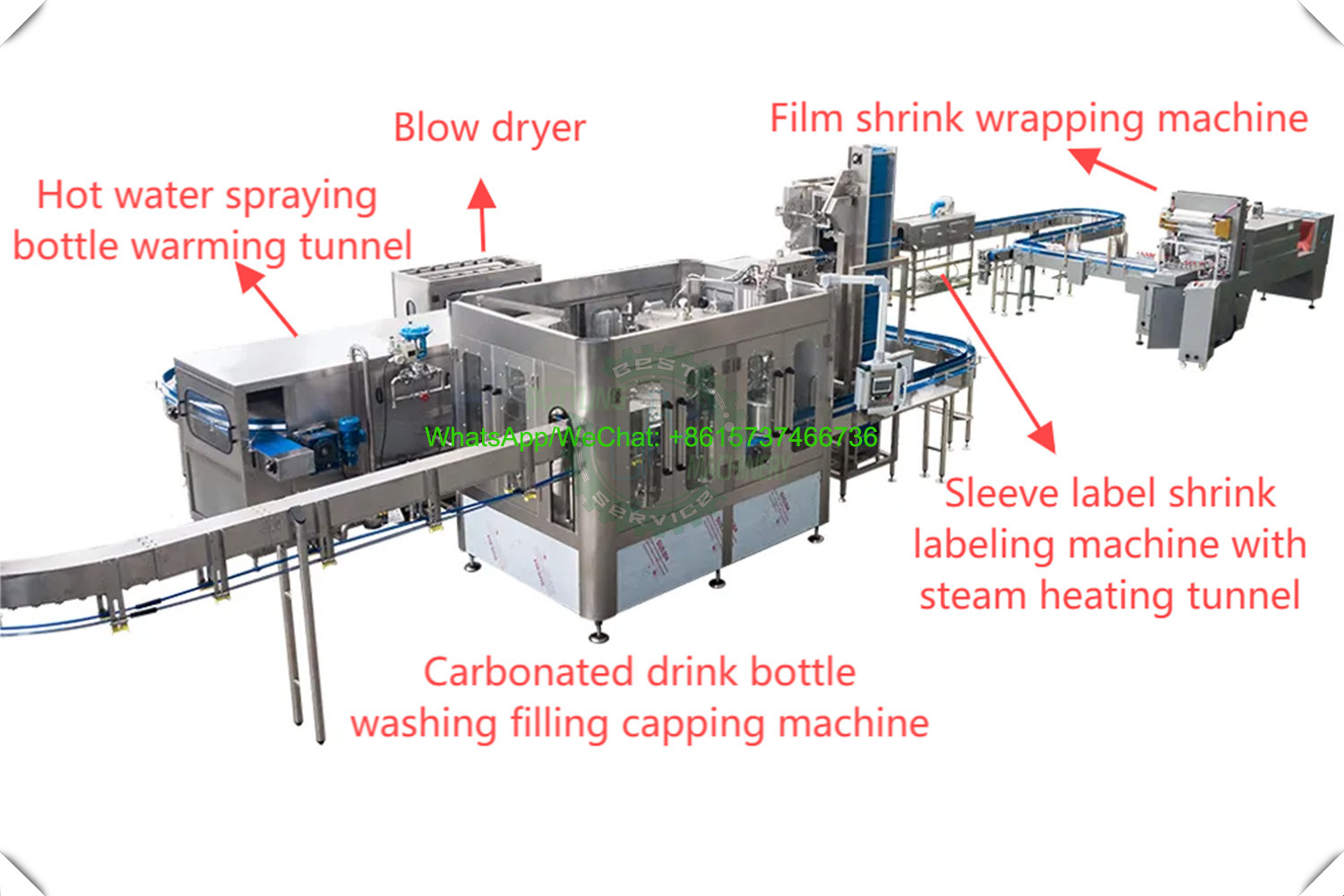

3-in-1 Bottle Washing, Filling & Capping Machine for Carbonated Drinks:
This integrated machine combines rinsing, precision filling, and capping into one seamless, efficient unit, specifically engineered for carbonated beverage production.
1. Isobaric Filling Principle
Our system employs a precise isobaric filling method for carbonated drinks. After the filling valve seals the bottle mouth, CO₂ gas is first introduced to equalize the pressure inside the bottle with that in the beverage tank. The liquid then flows smoothly into the bottle by gravity. This process prevents foaming and overflow caused by pressure differentials, ensuring consistent carbonation levels and high filling accuracy.
2. Integrated Three-Stage Process
Rinsing: Utilizes high-pressure sterile water or steam to thoroughly and rapidly clean the interior of each empty bottle, effectively removing dust particles and microorganisms.
Filling: Precisely injects the carbonated beverage via the pressure-balancing system, achieving a high fill-level accuracy of ≤ ±1%.
Capping: Automatically applies and tightens caps with an adjustable torque mechanism, ensuring a secure seal for various cap materials.
3. Application Scenarios
Beverages: Ideal for carbonated drinks such as cola, soda, sparkling water, and beer.
Containers: Compatible with both PET and glass bottles.
4. Complete Workflow
The machine integrates perfectly into your production line: Bottles from the blowing machine are conveyed in, then sequentially undergo Rinsing → CO₂ Pre-Pressurization → Isobaric Filling → Pressure Exhaustion → Capping, before being output as sealed, finished products.
Also known as a tunnel pasteurizer, this machine is essential for ensuring a dry, label-ready bottle surface after cold filling. When bottles filled with beverages at approximately 4°C encounter ambient air, significant condensation forms on the exterior. The Bottle Warming Tunnel gently heats these bottles to room temperature (typically 30-35°C), effectively eliminating condensation to facilitate smooth subsequent labeling and coding operations.
Working Principle
Operating as a tunnel-style spray system, the machine heats bottles through heat exchange from circulating hot water sprays. This ensures uniform and gentle warming of the entire container.
Standard Configuration
The machine primarily consists of:
Machine Frame & Conveyor Chain
Drive System
Water Storage Tank & Circulation Pumps
Spraying System
Heating Unit & Pipeline Network
Available Models & Processes
We offer two main configurations to suit different product requirements:
Standard Bottle Warmer (Without Sterilization Section):
The direct and standard solution for condensation control.
Process: Direct temperature elevation to ambient.
Pasteurizer (With Sterilization Section):
Designed for products requiring microbial stabilization or extended shelf life.
Process: Employs a precise four-stage sequence—Pre-heating → Sterilization → Pre-cooling → Final Cooling—with top-to-bottom spray coverage.
The sterilization temperature and dwell time (e.g., 65-75°C for 10-15 minutes for beer) are fully adjustable, automatically controlled, recorded, and maintained.
Application Guidance
Carbonated Soft Drinks: Typically utilize the standard bottle warmer (without sterilization).
Beer & Certain Beverages: Often require the pasteurizer model (with sterilization section) to ensure product stability and safety.
This equipment features fully customizable and automatable temperature settings, providing a reliable and adaptable solution for your production line's final preparation stage.
Please review the video on automatic self – adhesive sticker labeling machine：https://youtu.be/LzNwhzY-zUs

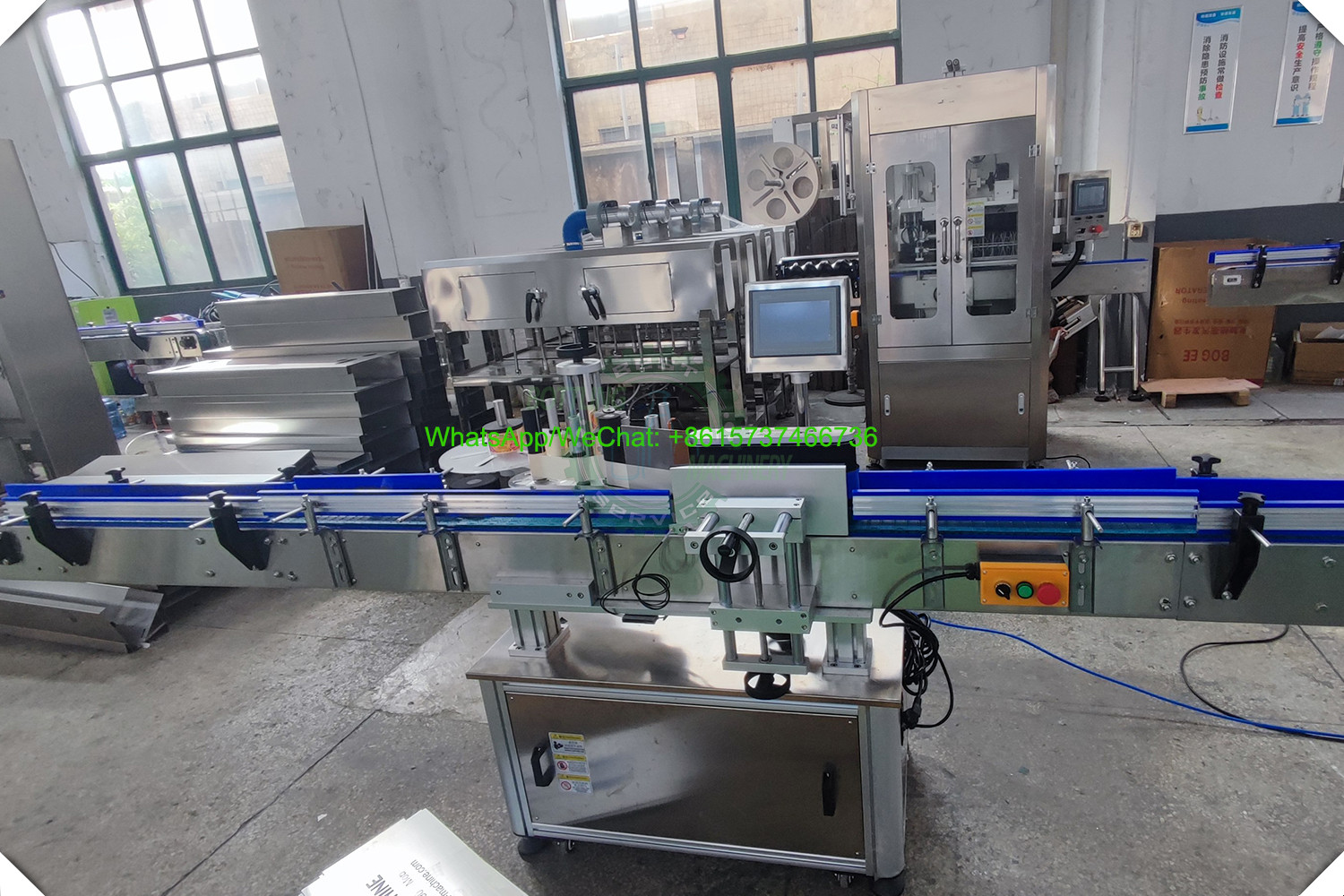

Labeling Equipment:
Our labeling systems provide precise, efficient application for a variety of packaging needs. They are designed to integrate seamlessly into your production line, ensuring bottles are market-ready.
Equipment Categories
We offer four main types of labeling technologies to suit different label materials and application methods:
Self-Adhesive Labelers: For pre-glued labels.
Sleeve Labelers: For stretchable sleeve films.
Hot-Melt Glue Labelers: For OPP labels using hot-melt adhesive.
Cold-Glue Paper Labelers: For paper labels applied with cold glue.
Label Procurement
Note: The labeling equipment itself is supplied by us. Labels must be sourced separately by the customer. As an additional service, we can assist you in purchasing suitable labels from reliable suppliers.
Application Flexibility
Different bottle shapes, sizes, and labeling requirements call for specific equipment configurations. Our solutions cover various application styles, including:
Single-side labeling (for round bottles)
Two-side or three-side labeling (on a single face)
Front-and-back two-label application
Three-label application on one bottle
System Integration & Support
Labeling equipment is typically paired with coding machines for printing production dates. It connects directly to the filling and film-wrapping machines via conveyor for a continuous flow. We recommend the most suitable equipment model based on your production line speed, bottle shape, and label dimensions.
Label Design
The label content and artwork are designed and supplied by your chosen printing company, allowing for complete brand customization.
Please take a look at the video regarding automatic bottles film shrink wrapping machine：https://youtu.be/HsU6XGNsg4A

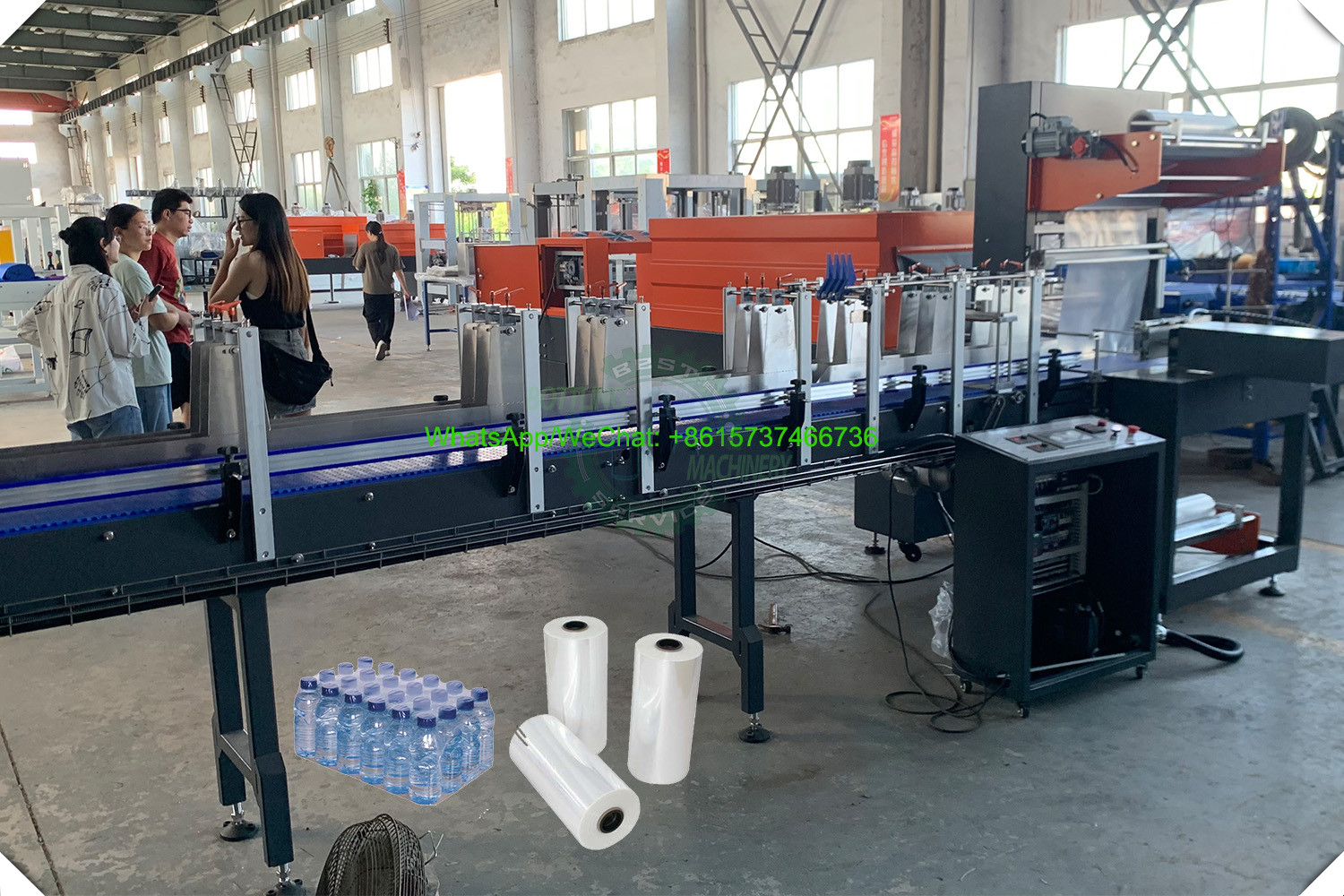

Film Packaging Machine (Shrink Wrapping System):
This machine efficiently bundles individual bottles into secure, stable multi-packs for easy handling and distribution. It seamlessly integrates into the end of your production line.
Operating Principle
The system consists of four main sections: conveyance, bottle grouping, film cutting/sealing, and a heat tunnel. With its wide inlet, it connects directly to your line's conveyor. Bottles are organized into groups by guiding plates and fed into the wrapping stage. Once a group is wrapped in film, it moves into the electrically heated shrinking furnace. The heat evenly shrinks the film to form a tight, tamper-evident package. For larger-scale operations, a palletizer or stretch wrapper can be added downstream.
Film Customization
The film width is fully customized to match your specific bottle grouping arrangement. While any formation is possible, common configurations include 3x4 (12 bottles) and 4x6 (24 bottles) packs.
Available Types
We offer various models to meet different needs, including:
Standard machines using transparent film.
Machines compatible with pre-printed colored films for enhanced branding.
Models equipped with integrated bottom trays for added stability.
Different production speeds are accommodated by corresponding machine models.
Consumables & Key Components
Primary Consumable: PE shrink film.
Key Wear Part: The heating elements within the shrinking furnace. We ensure reliable availability of all necessary spare parts for sustained operation.

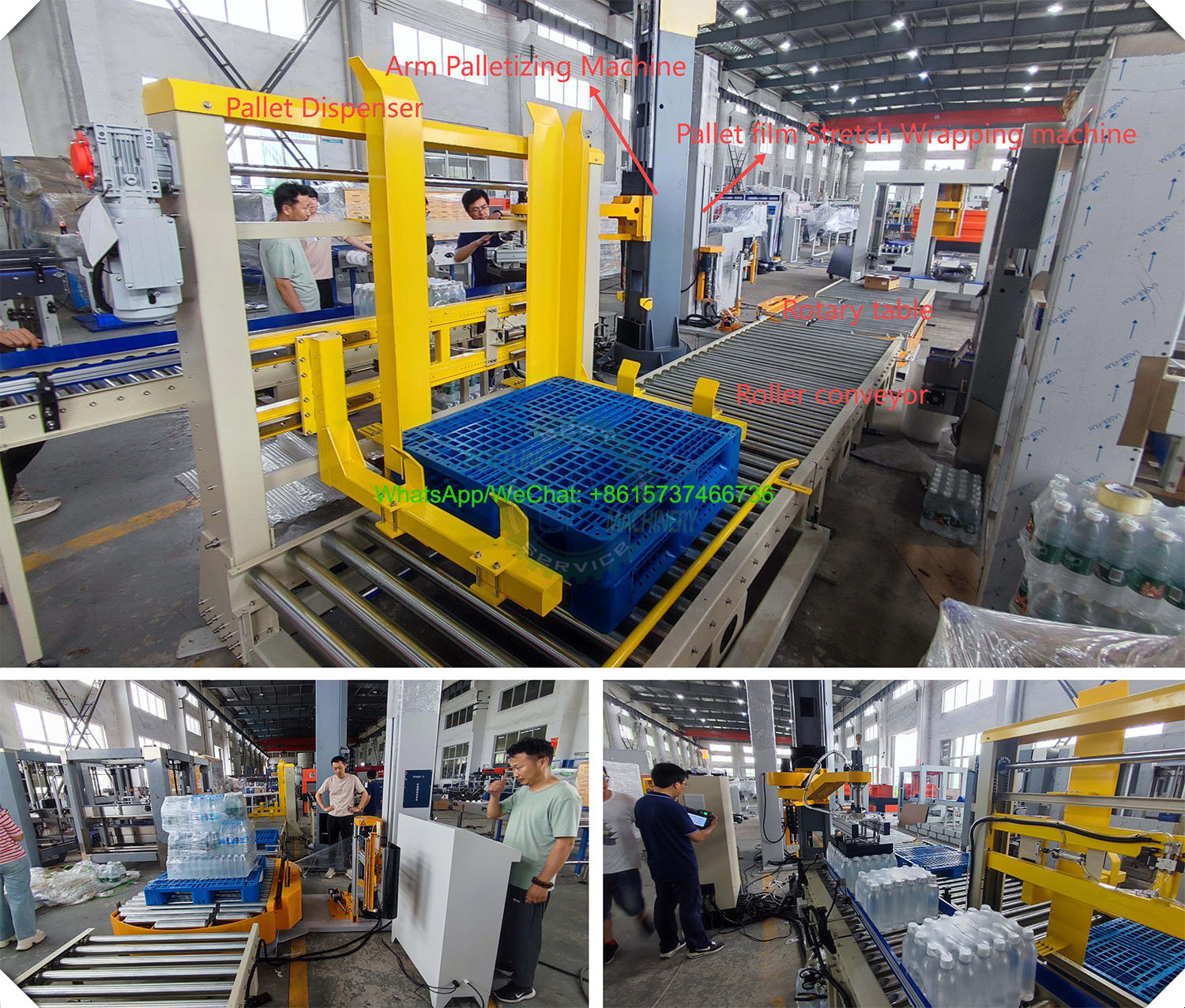

Palletizing, Dispensing & Wrapping Systems：
This integrated end-of-line automation solution efficiently prepares palletized loads for stable storage and transport.
Palletizing Machines
Automatically pick and place shrink-wrapped bottle bundles onto pallets. Options include:
Gripping Methods: Air-suction heads or robotic manipulators.
Structural Types: Compact column-style for smaller lines, and heavy-duty gantry-style for high-capacity, stable operation.
Pallet Stack Feeding Machines
Automatically supply pallets to the palletizer. This automation enhances line efficiency and reduces labor. Systems can also be configured to include separator board placement.
Pallet Wrap-around Machines (Stretch Wrappers)
Secure the stacked load with film. Two main types are available:
Turntable Wrappers: The pallet rotates for wrapping; ideal for standard, stable loads.
Orbital (Boom-Type) Wrappers: The film boom rotates around a stationary pallet; best for tall, unstable, or irregular loads to prevent toppling.
Integrated Workflow
The system operates sequentially: the dispenser feeds a pallet, the palletizer stacks the load, and the wrapper then stabilizes it with film, creating a secure, forklift-ready unit.
