Film Shrink Packing Machine
 | Film Shrink Packing MachineFast, reliable, and professional—our film shrink packing machines deliver tight, protective wraps that enhance your product’s appearance. Ideal for bottles or a variety of products, they offer high-speed operation, precise control, and easy maintenance. Boost efficiency and streamline your packaging with our advanced, versatile solutions. |

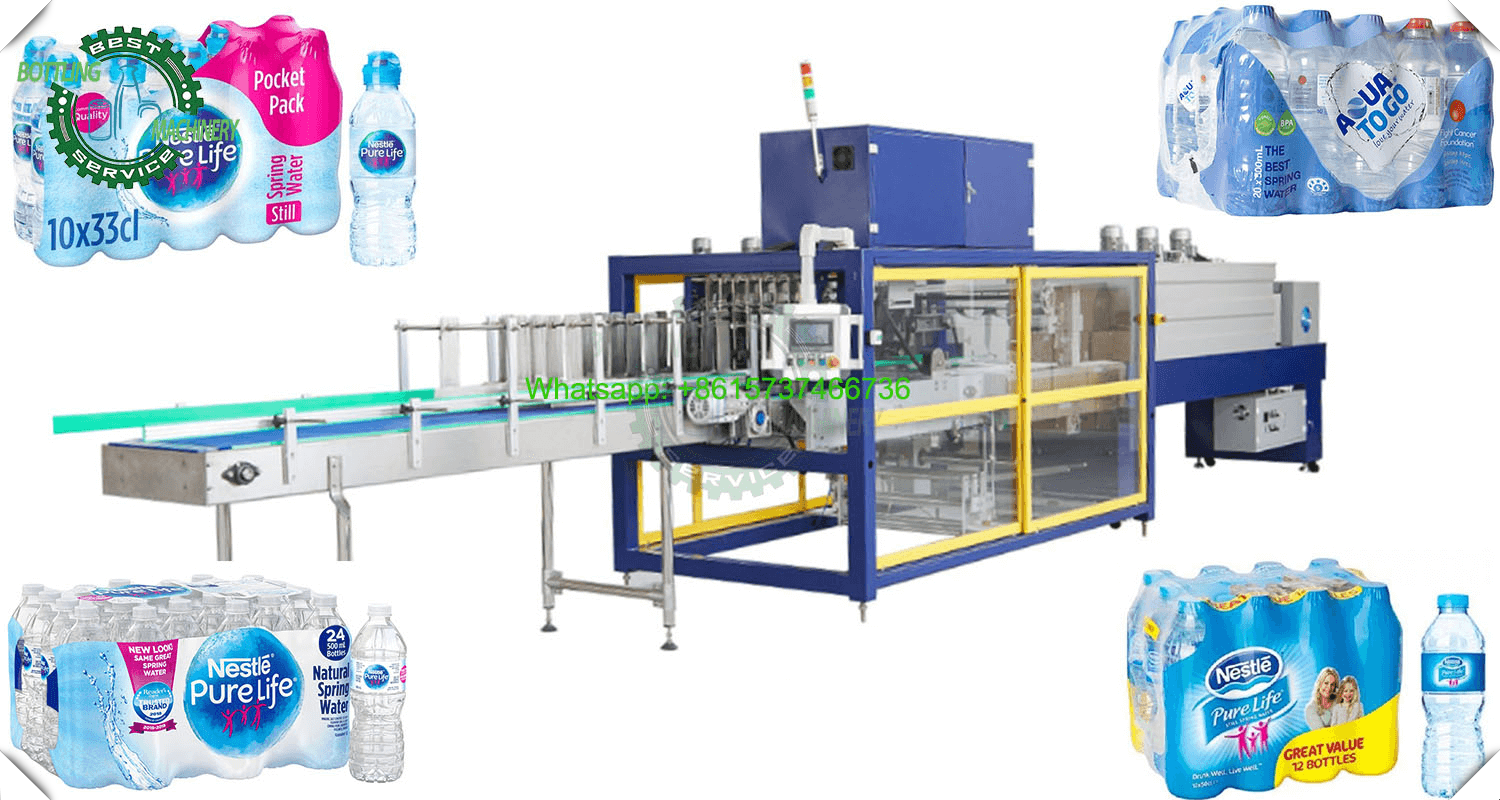

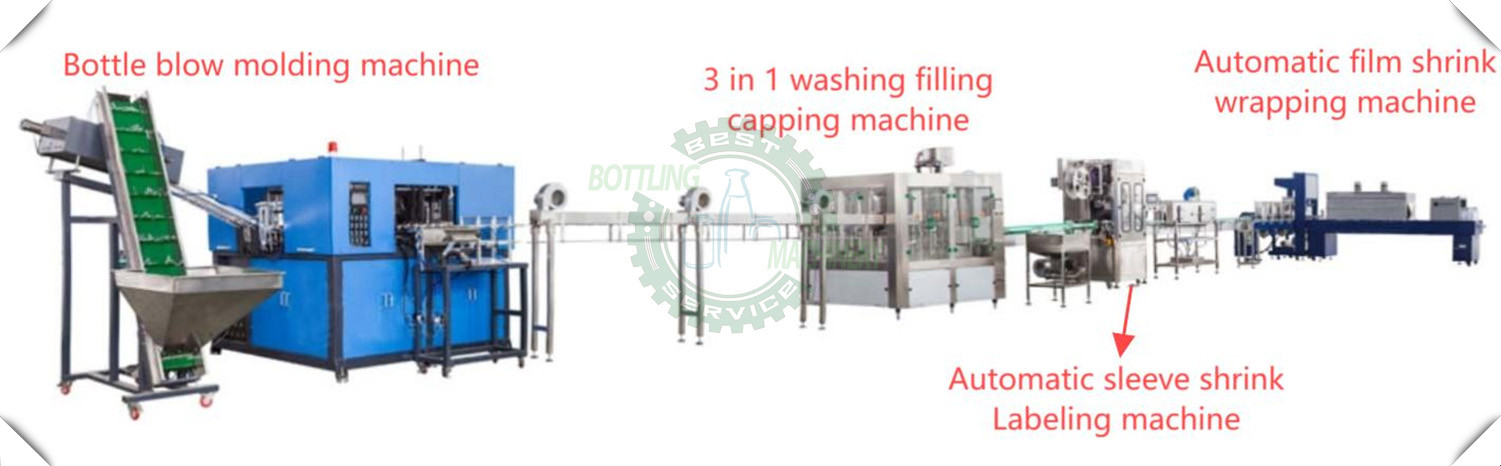

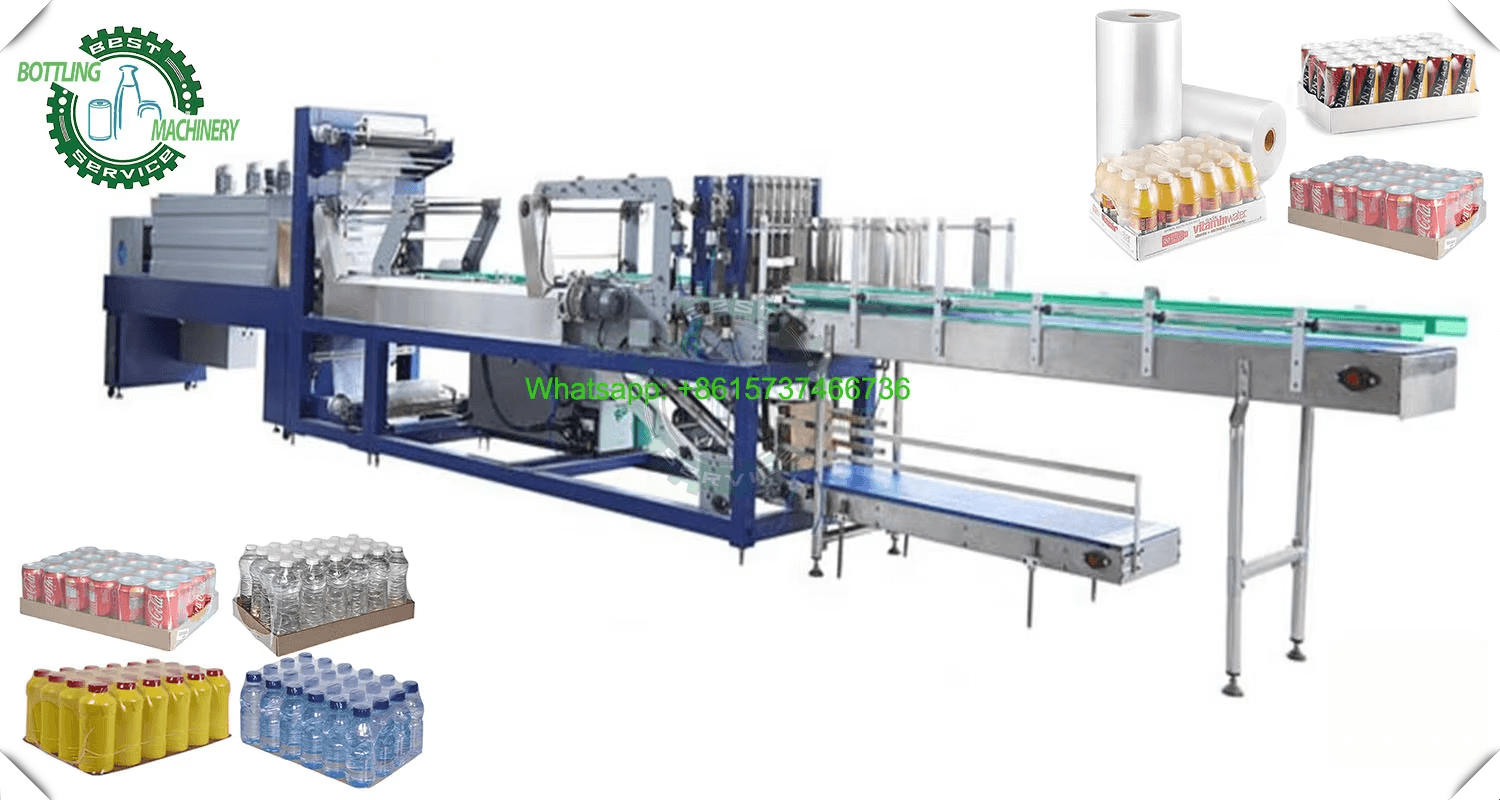

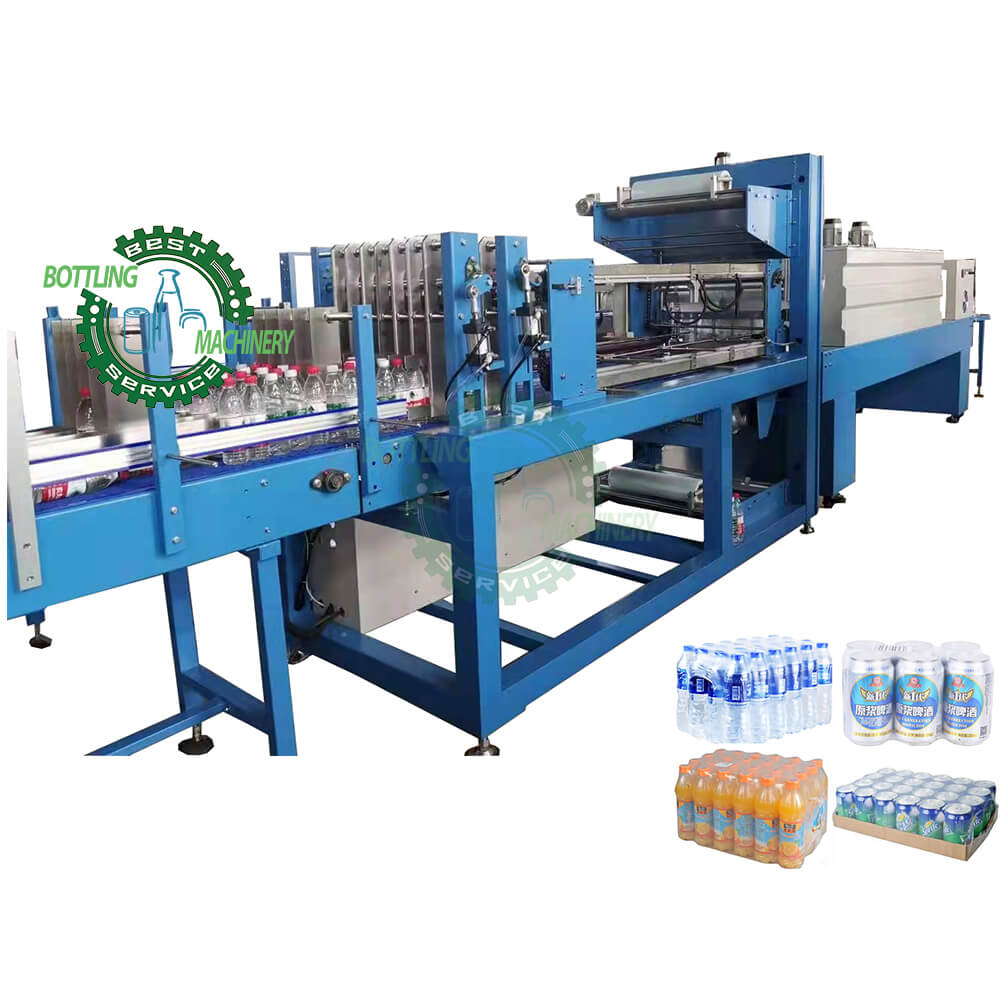

Shrink wrapping machines are typically positioned at the end of the production line. A standard machine consists of a bottle infeed conveyor, a film wrapping section, and a shrink oven. The infeed conveyor is equipped with dividing plates to arrange bottles into multiple rows. After a group of bottles is wrapped in film by the wrapping section, they immediately enter the shrink oven. The oven uses electric heating to tightly shrink the film around the product group, transforming loose bottles into a secure, stable bundle that streamlines handling and transportation.
The selection of a shrink wrapping machine should be based on the speed of your filling machine to ensure seamless line integration and meet production throughput requirements.

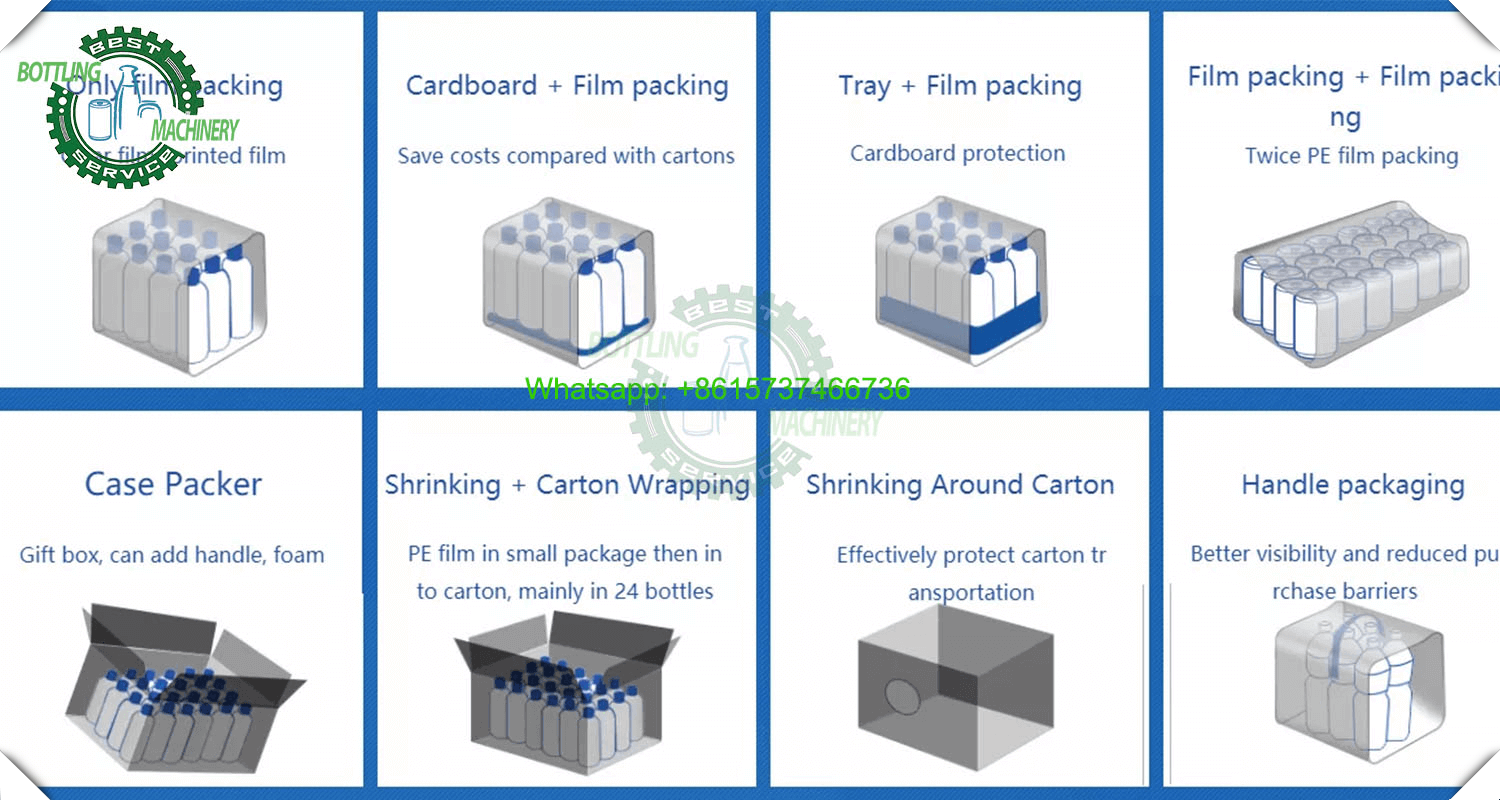

Various shrink wrap packaging forms are available, including:
PE transparent film wrapping
Packaging with a bottom tray
Glass bottle film wrapping
Printed film packaging
Carton overwrapping
This packaging method is suitable for a wide range of containers, including plastic bottles, glass bottles, and cans.
The film width is customized according to the specific dimensions of the customer's product group. Bottles can be conveyed and grouped in various configurations, with common arrangements being 3x4 (12 bottles) and 4x6 (24 bottles).
Machine Classifications:
Machines are categorized based on application, including standard transparent film wrappers, colored/printed film wrappers, and tray-based shrink wrapping systems.
Video link: https://youtu.be/HsU6XGNsg4A

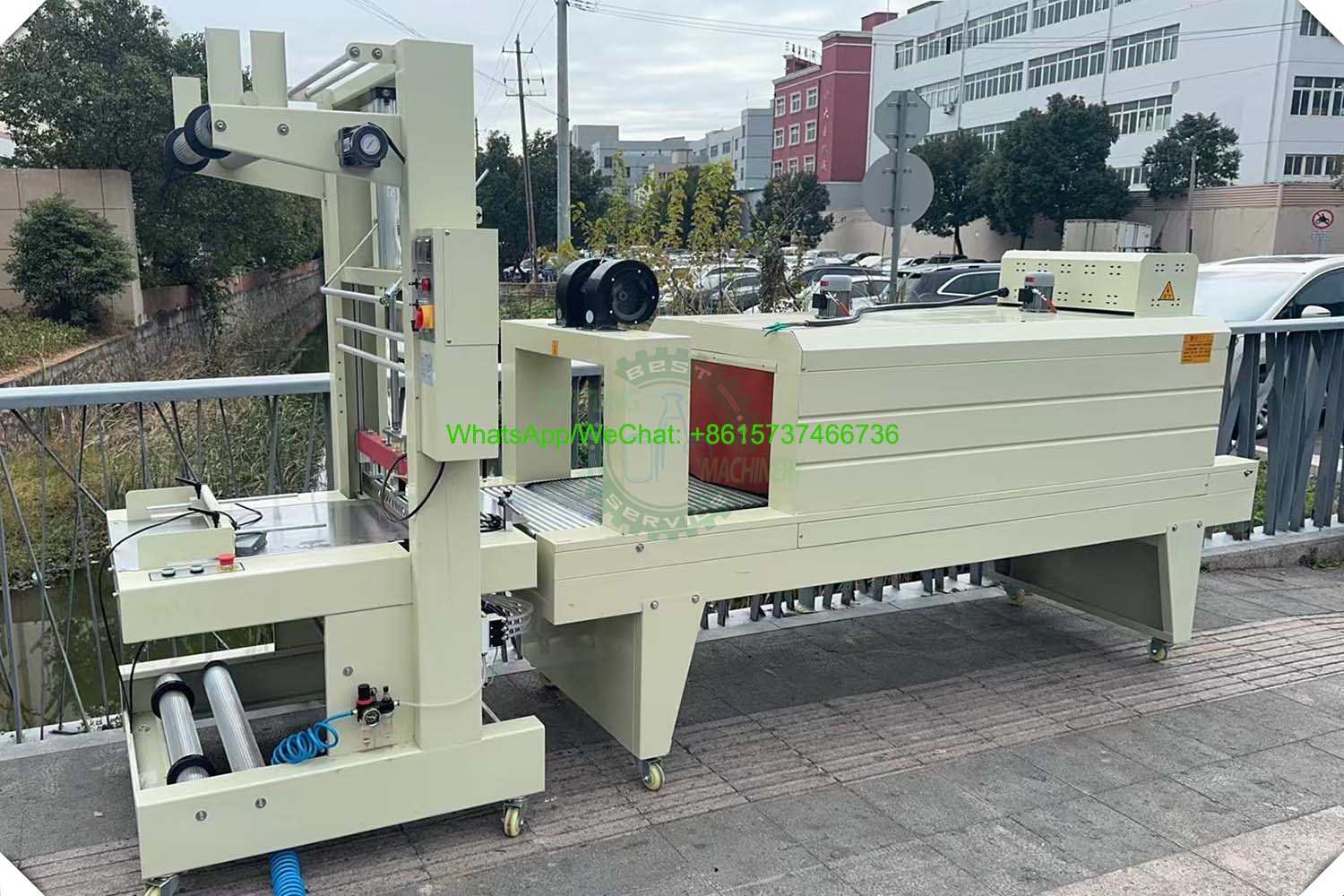

Semi automatic bottle PE film shrink wrapping machine(3-5packs per minute)
Video link: https://youtu.be/wcf44mRI8zU
Video link: https://youtu.be/fD7QnHFTDJY
Video link: https://youtu.be/grxWsrL3Gp4
Video link: https://youtu.be/6o4V1Gf-bP0
Video link: https://youtu.be/N9fEE-GL0WU

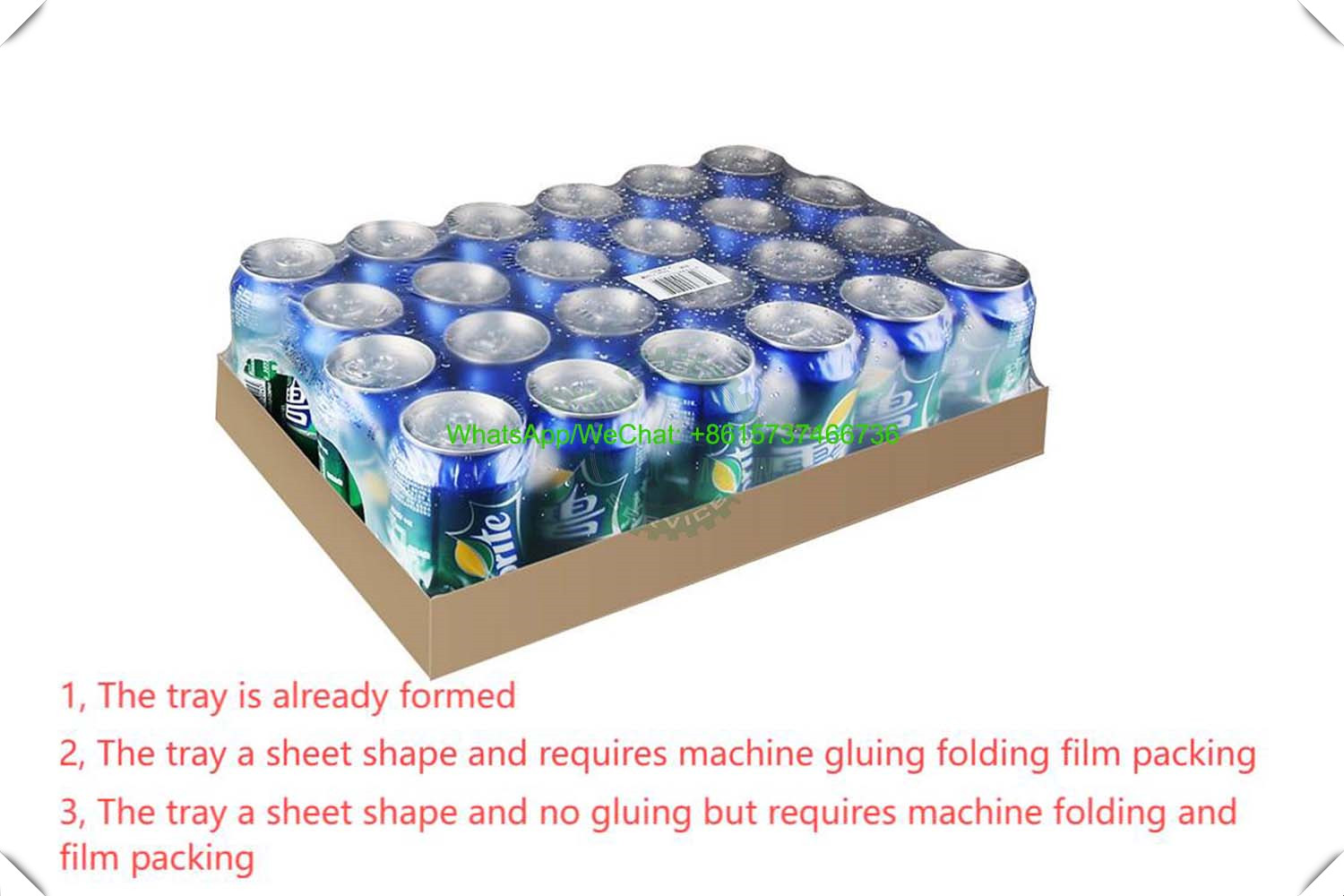

1.The tray is already pre-formed.
2.The tray is supplied as a flat sheet and requires machine gluing, folding, and film packing.
3.The tray is supplied as a flat sheet, requires no glue, but needs machine folding and film packing.
Which form of half tray do you use? The machines required for each form are different.
The machine for the pre-formed tray is semi-automatic, with prices ranging from $2,500 to $5,000.
The machine for the half tray requiring gluing + film packing typically costs between $60,000 and $70,000.
The machine for transparent film packing is priced from $2,500 to $25,000.
The machine for colorful/printed film packing costs between $30,000 and $50,000.
The machine for carton packing is priced from $20,000 to $50,000.
Bottles divider / bottles Separation machine / bottles diverter / bottles Splitter machine / Bottles Distribution System
Video link: https://youtu.be/35DPRzB9xSU

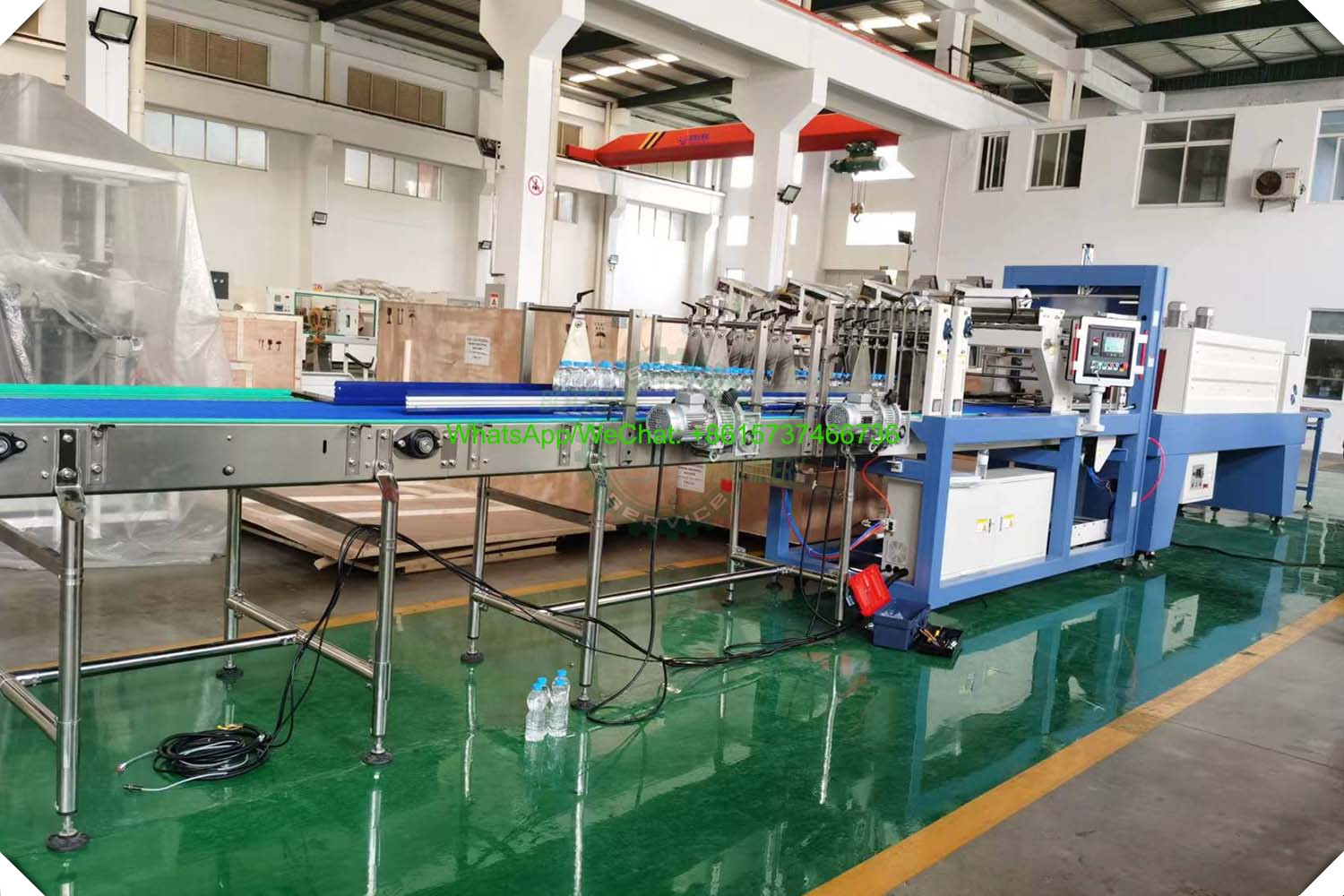

On the film wrapping machine or carton packaging machine, there is a bottle infeed conveyor. The conveyor is equipped with bottle dividing plates, allowing it to transport round bottles smoothly. A large number of round bottles can pass evenly through each partition under the conveyor's drive. Since round bottles roll easily, this smooth passage is achievable.

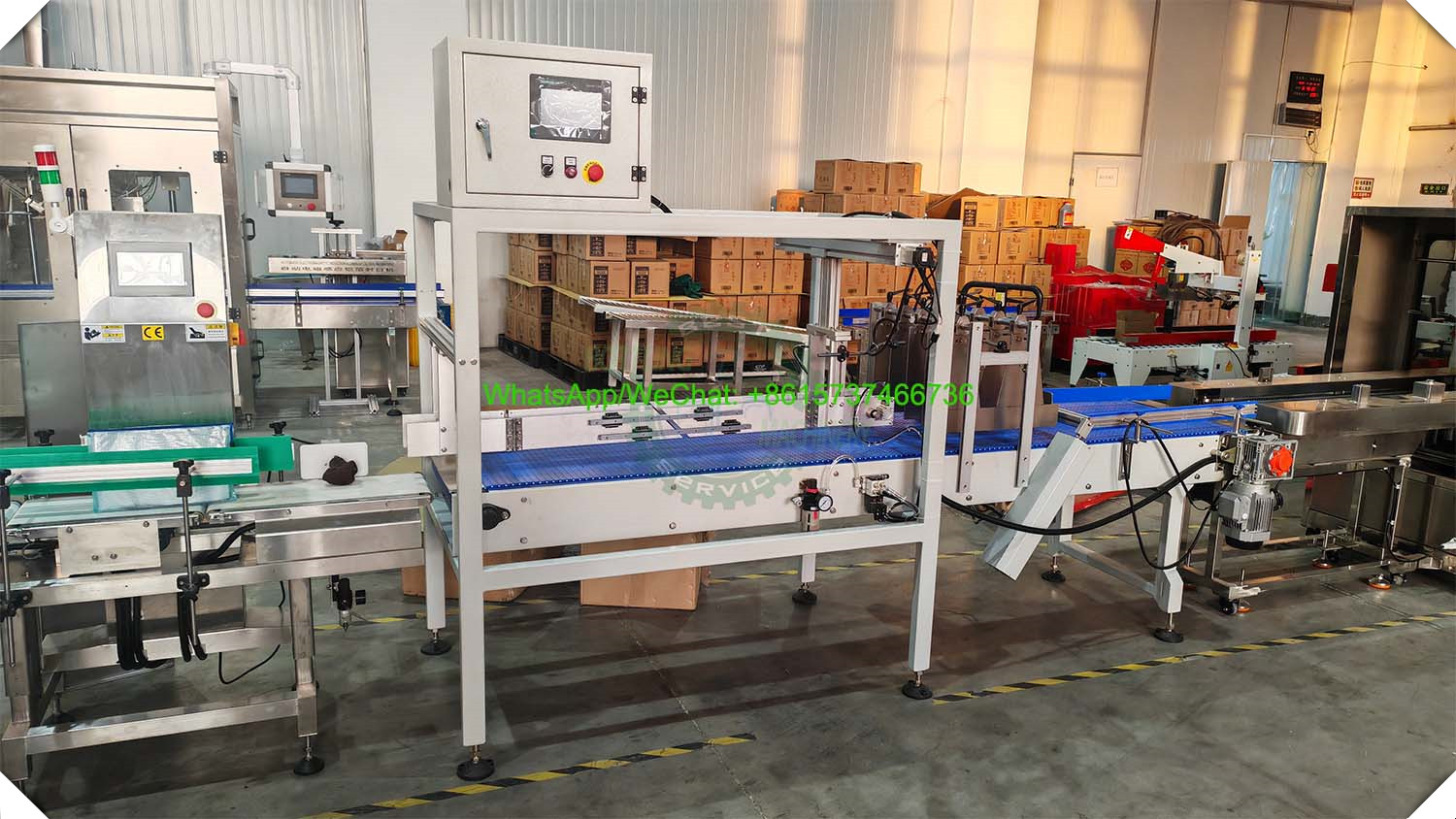

However, if the customer's bottles are square, bottle jams are likely to occur during conveying, and the bottles cannot be evenly distributed to each channel. In such cases, a bottle lane divider is required. The bottle lane divider can evenly distribute bottles to each channel through the swinging motion of a servo motor and the counting function of a photoelectric PLC system.
In addition to film packaging for bottled products, we also offer packaging solutions for a wide variety of food products. The following are three types of machines:
POF film heat shrink packaging machine.
Pillow packaging machine with a heat shrink oven.
Pillow packaging machine without a heat shrink function but equipped with a shrink oven.

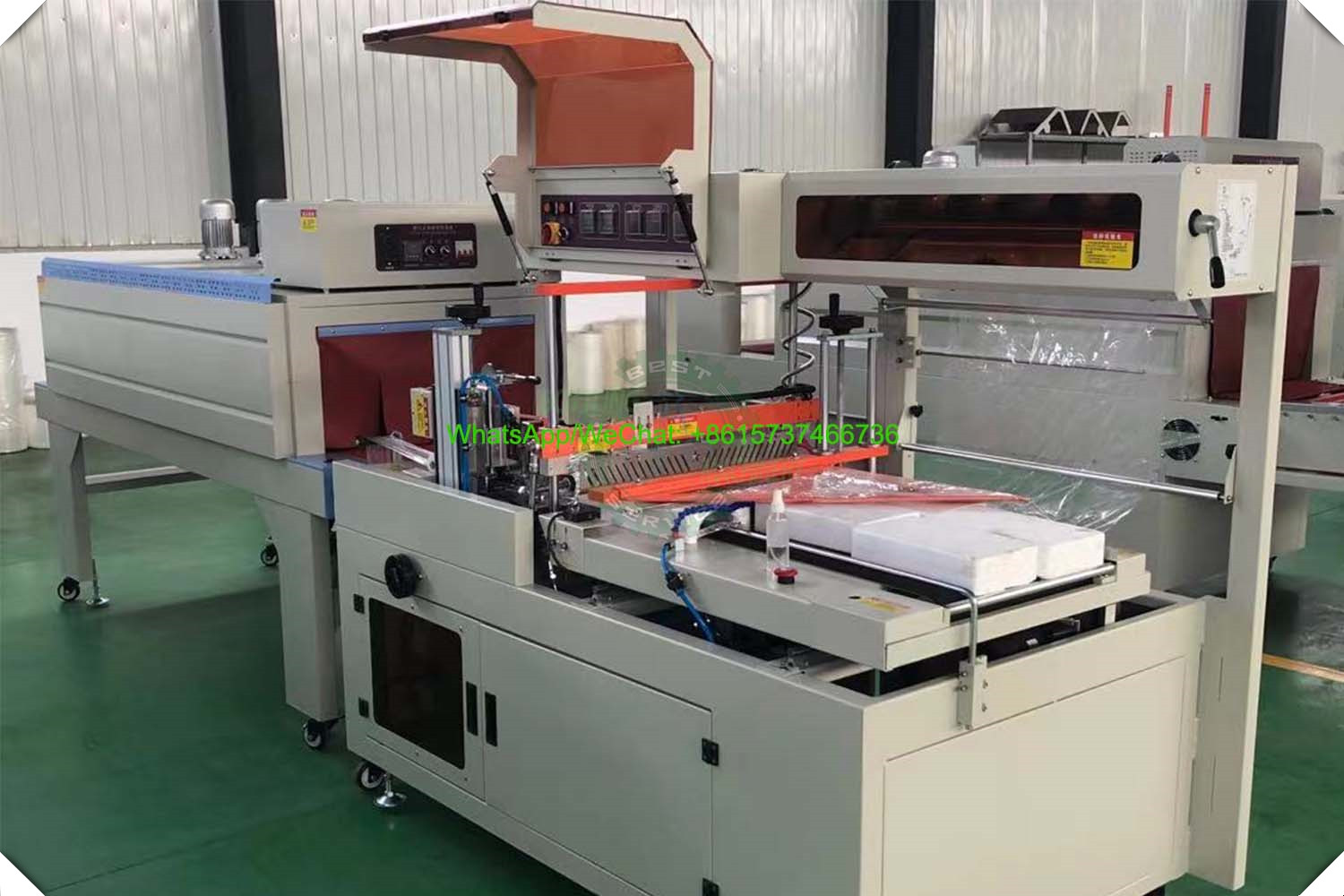

POF Film Packing Machine with Heat Oven Tunnel Thermal Shrink Wrapping Machine
Video link: https://youtu.be/o8PM_w2KDF0
This machine is suitable for POF film and is not designed for PE film. It is ideal for high-volume shrink wrapping applications in industries such as stationery, food, cosmetics, and metal products.
It features imported PLC automatic program control for easy operation, along with safety protection and alarm functions to effectively prevent incorrect packaging. Equipped with imported horizontal and vertical detection photoelectric sensors, it allows for easy switching and selection. It includes a contact function specifically designed for packaging small-sized products. The machine can be seamlessly integrated into a production line, requiring no additional operators.

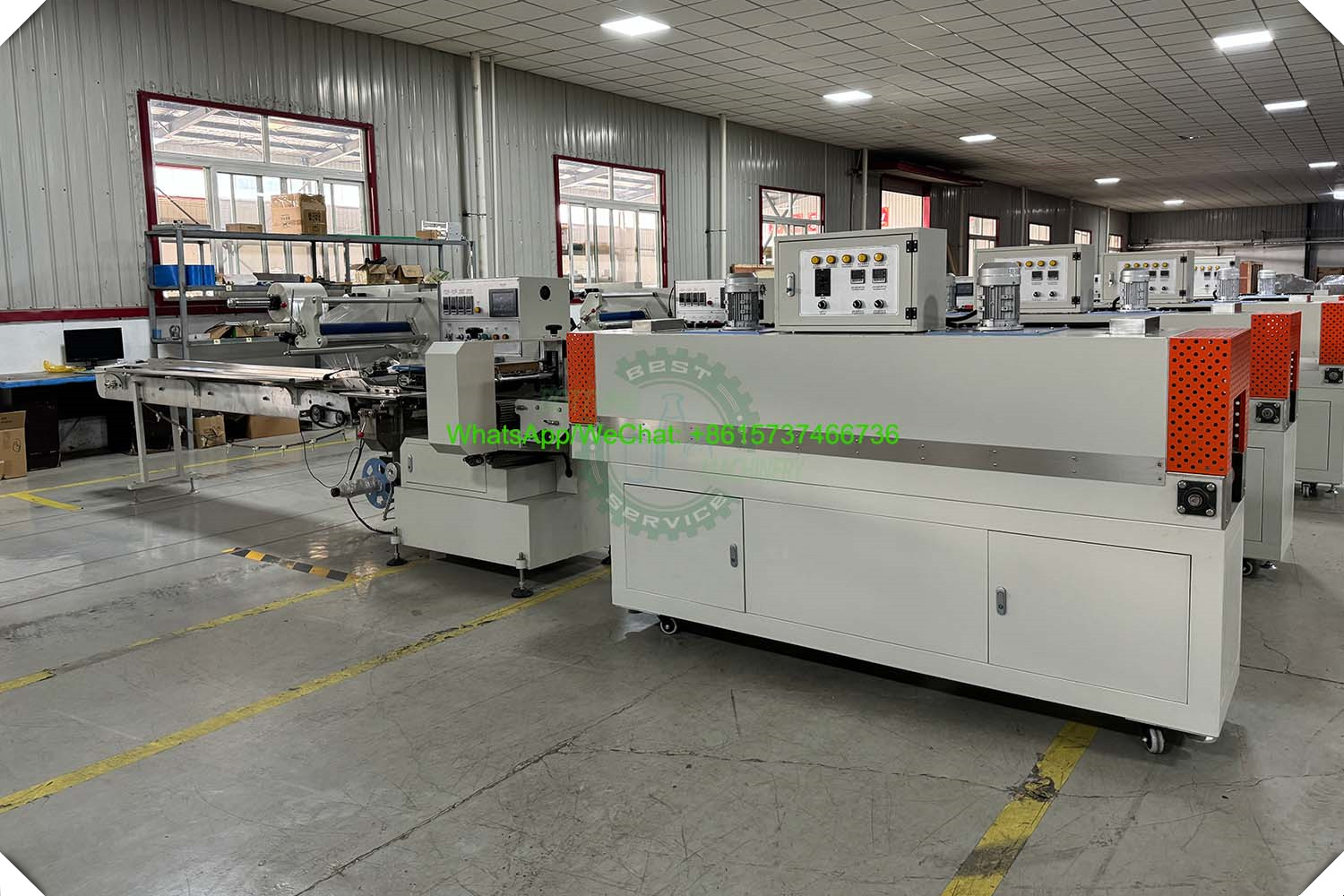

Pillow type packaging machine with heat shrink oven

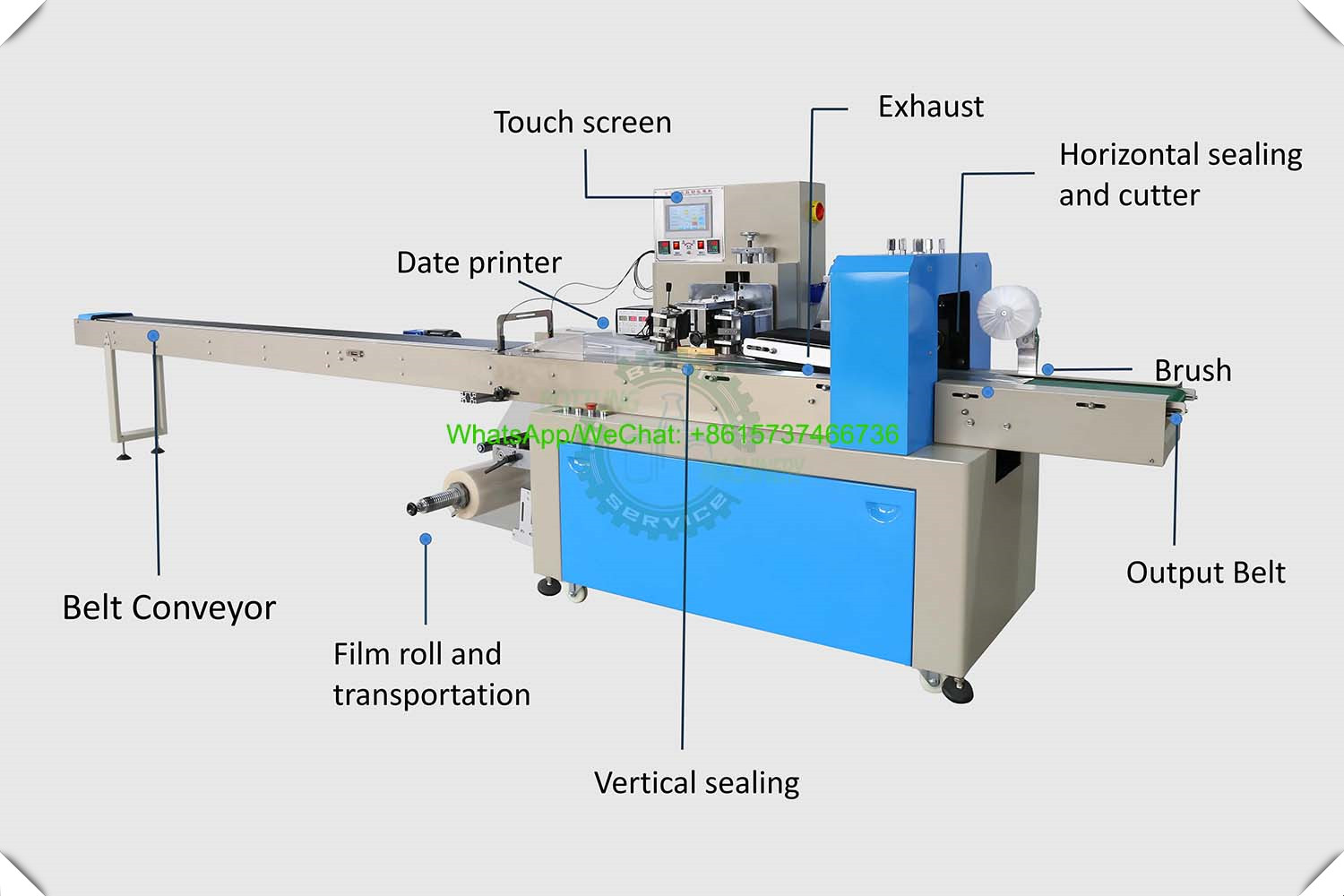

Pillow Type Packaging Machine Without Heat Shrink Oven

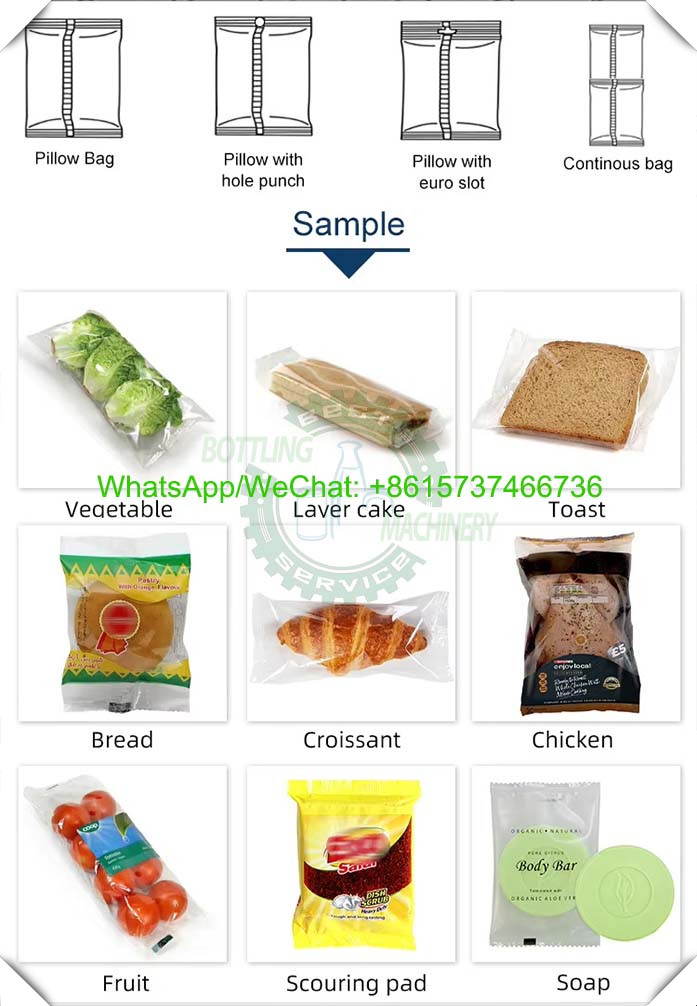

The fully automatic pillow type packaging machine is an integrated piece of equipment that can automatically and continuously perform bag forming, sealing, and cutting. It enables the rapid packaging of products by forming bags from film, sealing them, and cutting them into individual, separate packages.
Its servo motor drive system ensures stable and adjustable speed with a wide adjustment range. The original roller self-rotation device allows for continuous sealing and cutting operations. It is designed for packaging solid objects and is suitable for various solid, regularly shaped items such as biscuits, bread, mooncakes, and candies, as well as daily necessities and industrial parts.
For loose or separated items, the products must first be placed in a box or bundled together before the machine can perform bag forming, sealing, and cutting. It can efficiently complete the bagging, sealing, and cutting of products using single-layer plastic film stretched into long bags.
Advantages of the Pillow Bag Packaging Machine:
High Degree of Automation: Utilizes advanced automation technology to perform a series of operations including automatic feeding, packaging, sealing, and printing production dates, significantly improving production efficiency.
Excellent Packaging Quality: Employs high-precision mechanical components and advanced sealing technology to ensure packaging integrity and seal quality, effectively protecting products from contamination during transport and storage.
Wide Range of Applications: Suitable for packaging products of various shapes and specifications, such as granules, flakes, and strips. It can be customized according to different product requirements.
Easy to Operate: Features a user-friendly HMI (Human-Machine Interface) design that is intuitive and easy to use. It includes a fault prompt function for timely identification and resolution of equipment issues.
Energy Saving & Environmentally Friendly: Incorporates advanced energy-saving technology to effectively reduce energy consumption and environmental impact, aligning with contemporary green and sustainable practices.
High Reliability: Constructed with high-quality materials and strict manufacturing processes, ensuring high stability, reliability, and long-term stable operation.
