Sauce Filling Line

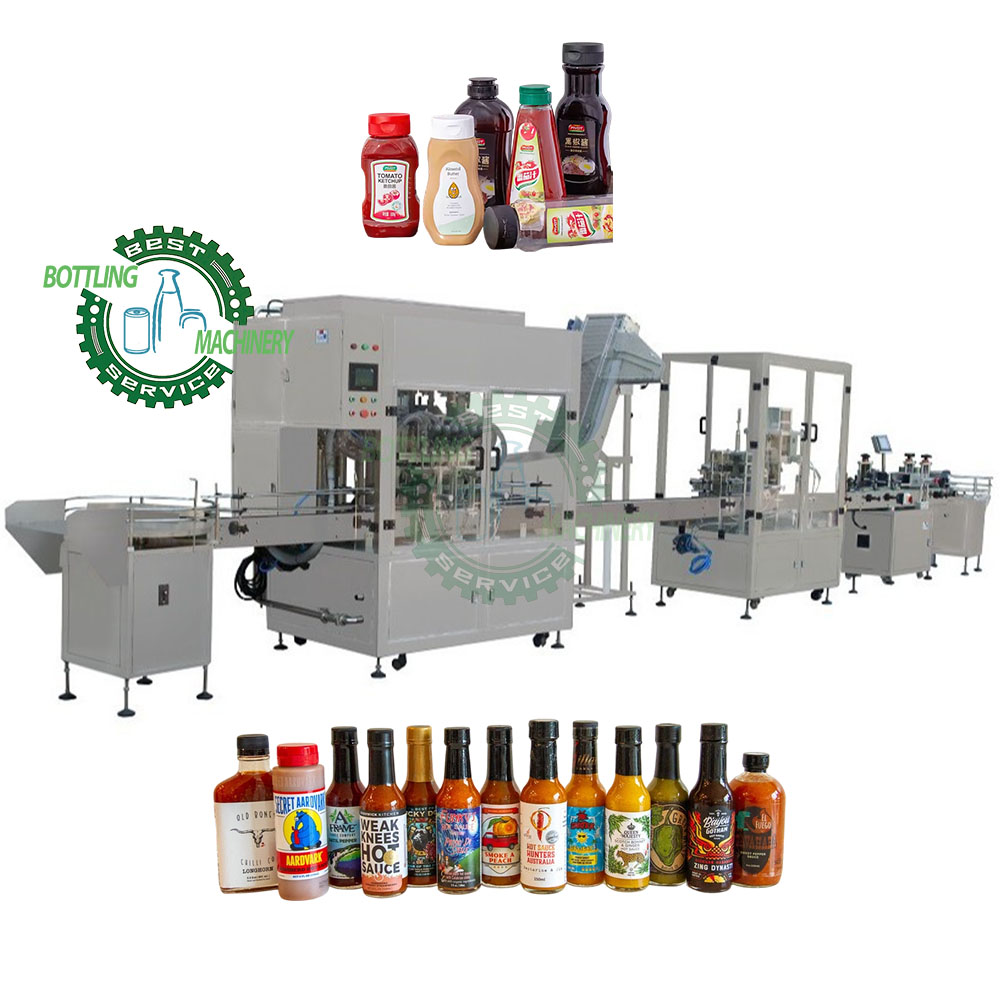

Kitchen sauce filling line

We offer high-precision filling machines for paste, sauce, honey, jam, butter, and mayonnaise. From bottle and cup filling to sealing and capping, our equipment ensures accurate dosing, hygienic operation, and efficient production.

Inquire Now

Packaging Solutions for Kitchen Liquids & Semi-Liquids
We specialize in providing corresponding filling and packaging machinery for a wide range of liquid and paste products used in the kitchen. Examples include sauces, soy sauce, vinegar, ketchup, honey, chili sauce, and butter.
Our focus is on the packaging process itself; we do not supply equipment for producing these materials. Our portfolio includes bottle washing machines, filling machines, capping machines, labeling machines, coding machines, film wrapping or carton packing machines, palletizing machines, and more.
All machinery is customized according to the specific material, shape, and size of the customer's containers, as well as the type of caps, labels, and overall packaging requirements.
Kitchen Liquid and Paste Filling: Container and Equipment Compatibility Table

Container Type	Common Materials	Examples of Applicable Materials	Types of Matching Filling Machines	Characteristics of Filling Machines
Narrow-mouth Glass Bottle	Glass (Brown/Transparent)	Vinegar, Soy Sauce, Olive Oil, Cooking Wine	Gravity-type Filling Machine	– High precision (±0.5%) with speeds of 200-400 bottles/minute. – Liquid-level sensor prevents overflow; suitable for low-viscosity substances (<500cP). – Standard nitrogen replacement (oxygen content ≤1%).
Wide-mouth Glass Jar	Strengthened Glass	Jam, Honey, Butter, Cream Cheese	Piston-type Filling Machine	– High precision (±1%), supports high-viscosity substances (1,000-50,000cP). – Heating jacket prevents solidification (temperature control ±2°C). – Strong adaptability for wide-mouth containers (≥50mm).
PET Plastic Bottle	PET (Transparent/Matte)	Ketchup, Salad Dressing, Liquid Cheese	Flowmeter Filling Machine	– Electromagnetic flowmeter measurement with ±0.3% precision. – Supports hot filling (≤85°C). – CIP in-line cleaning; material change time ≤15 minutes.
PE Flexible Tube	PE/LDPE	Mustard Sauce, Toothpaste-like Seasonings, Mayonnaise	Screw-type Filling Machine	– Servo-motor driven; compatible with pastes (10,000-100,000cP). – Flexible tube clamping prevents back-suction; filling volume adjustable from 5-500ml. – Supports quick switching for multiple tube specifications.
Tinplate Can	Tinplate (Tin-Plated Steel)	Tomato Paste, Condensed Milk, High-Oil-Fat Sauces	Vacuum Filling Machine	– Vacuum negative-pressure filling prevents oxidation (residual oxygen ≤0.5%). – Nitrogen gas covering system extends shelf life. – Container positioning precision ±0.2mm.
Aluminum-made Flexible Pouch	Aluminum-plastic Composite Film	Curry Sauce, Hot Pot Base, Instant Soup	Vertical Pouch-forming Filling and Sealing Machine	– Integrated bag-making, filling, and sealing. – Supports gusseted/quad seal designs with nitrogen flushing for freshness preservation. – Output: 80-200 pouches/minute with an error of ±1g.
Squeeze Bottle	PP/HDPE	Salad Dressing, Honey, Syrup	Quantitative Pump Filling Machine	– Gear pump for quantitative filling; viscosity range 500-20,000cP. – Anti-drip and back-suction prevention; residual amount ≤0.1ml. – Automatic bottle-mouth alignment for irregular-shaped bottles.
Composite Film Stand-up Pouch	PET/AL/CPP	Soy Sauce Packets, Vinegar Packets, Seasoning Oil	Fully-automatic Pouch Filling Machine	– Adjustable heat-sealing temperature (150-220°C). – Supports 3-1000ml capacity with ±0.5% precision. – Visual inspection for leakage/sealing defects.
Metal Beverage Can	Aluminum/Tinplate	Cream, Chocolate Sauce, Liquid Butter	Weighing-type Filling Machine	– Dynamic weighing precision ±0.1g, ideal for high-value materials. – Nitrogen filling and sealing with a foam suppression system. – Automatic can stacking; speed 60-120 cans/minute.

Common Bottle Cap Types

Chinese Name	English Name	Features and Application Scenarios
塑料旋盖	Plastic Screw Cap	A universal type, commonly used for sauce bottles and beverage bottles. Made of PP/PE material, it offers a low-cost solution.
ROPP铝制螺纹盖	ROPP (Roll-On Pilfer-Proof) Cap	A tamper-evident aluminum cap that requires special equipment for roll-on application. Commonly used for wines, premium olive oils, and pharmaceuticals (e.g., medicine bottles).
掀盖（翻盖）	Flip-Top Cap / Snap Lid	Features one-handed operation for easy opening. Frequently used for sauces, soy sauce, and edible oils.
压旋盖	Press-and-Turn Child-Resistant Cap	Requires pressing down and then twisting to open, designed to prevent accidental opening by children. Used for pharmaceuticals and chemicals (e.g., medicine bottles, bleach containers).
滴管盖	Dropper Cap	Equipped with a glass or plastic dropper for precise dispensing. Ideal for essential oils and medications (e.g., essential oil bottles, eye drop bottles).
蝴蝶盖	Butterfly Cap	Opened by pressing on both sides. Commonly found on jars for products like jams and honey (e.g., baby food jars).
真空密封盖	Vacuum Seal Lid	Features a silicone ring for an airtight design. Used for food storage containers (crispers) and coffee cans (e.g., kitchen storage jars).
磁吸盖	Magnetic Cap	Utilizes magnetic adsorption, allowing for one-handed opening. Often used for premium skincare products and condiment bottles (e.g., olive oil bottles).
吸嘴盖	Spout Cap	Includes a built-in pouring spout with an anti-leak design. Suitable for edible oils and liquid detergents (e.g., oil dispensers, laundry liquid bottles).
塞盖	Cork Stopper	Made from natural cork or synthetic materials. Traditionally used for red wines and vinegar bottles (e.g., premium vinegar bottles).
防盗环盖	Tamper-Evident Ring Cap	The ring breaks and detaches upon first opening, providing evidence of tampering. Common for beverages and pharmaceuticals (e.g., water bottles, medicine bottles).

Filling Machines
1. For High-Viscosity Liquids like Sauces, Chili Sauces, and Butter
For high-viscosity products such as sauces, chili sauces, and butter, we recommend our piston-type filling machines. These machines draw product from the material tank and deliver precise fills into containers via the reciprocating motion of a piston, achieving a filling accuracy of up to ±1% to meet various packaging specifications.
To ensure the smooth flow of viscous materials, the machine is equipped with a heating and insulation jacket. This maintains the product within an optimal temperature range, temporarily reducing viscosity for easier handling. Furthermore, the specially designed filling nozzle prevents product adhesion and dripping, maintaining a clean production environment.
2. For Low-Viscosity Liquids like Soy Sauce and Vinegar
For low-viscosity liquids such as soy sauce and vinegar, the gravity-type filling machine is the optimal solution. Utilizing the natural force of gravity, it performs quantitative filling by controlling the opening and closing of fill valves. This design offers a simple structure, high filling speeds, and exceptional accuracy of up to ±0.5%.
To minimize foam generation, the machine employs a submerged filling nozzle. This allows liquid to flow gently into the container, reducing turbulence and impact. An integrated liquid level control system ensures consistent fill heights across every bottle.
3. For Particulate or Semi-fluid Liquids like Ketchup and Honey
For products containing particles or with a semi-fluid consistency, such as ketchup and honey, the screw-type filling machine is ideal. It advances product through the rotation of a screw to achieve measured filling. This method effectively handles liquids with solid particulates, ensuring even particle distribution without clogging.
The screw rotation speed can be precisely adjusted based on product viscosity and desired fill volume, with accuracy maintained within ±1%. The machine's internal pipeline is designed for smooth flow, minimizing product residue and simplifying the cleaning and maintenance process.
Vacuum filling

Video link: https://youtu.be/CE1sJ_hmIE8
Video link: https://youtu.be/bEsNX4oBhG8
Capping Machines
1. Screw Capping Machine
The screw capping machine is primarily designed for sealing products like sauce bottles and honey jars. It utilizes advanced torque control technology to apply the precise amount of force when tightening caps. This ensures a perfect seal to prevent leaks while still allowing for easy opening by the end consumer.
Its capping speed is adjustable to match production line requirements. An integrated photoelectric sensor monitors the position and status of each cap. Any container with a missing or improperly tightened cap is automatically rejected, guaranteeing consistent product quality.
2. Press-On Capping Machine
The press-on capping machine is suited for products requiring a pressed seal, such as premium soy sauce and vinegar bottles. It firmly secures caps onto bottle necks by applying precisely controlled pressure. This machine is compatible with caps of various materials and shapes, including metal and plastic lids.
It operates at high speed for optimal efficiency and is equipped with an automatic cap feeding system. This enhances the level of production automation and minimizes the need for manual intervention.

Video link: https://youtu.be/NraNWhm6Gg0

Video link: https://youtu.be/YAGrxMi0f8I

Video link: https://youtu.be/LzNwhzY-zUs
Labeling Machines
We specialize in four core types of labeling systems: pressure-sensitive labelers, sleeve label applicators, hot-melt OPP labelers, and cold-glue paper labelers. While we supply the machinery only (labels must be sourced separately), we offer optional support to assist with label procurement.
The optimal machine is selected based on your container's shape, size, and specific labeling requirements—such as single-side application (for round or flat bottles), dual-side, triple-side, front/back, or multi-label configurations.
Our labeling systems are designed for seamless integration. They easily connect with coders for date/batch printing and are synchronized via conveyor belt with upstream or downstream equipment like fillers or shrink wrappers. We provide tailored recommendations based on your production speed, container design, and label specifications.
Please note: Label artwork and printing must be supplied by your designated printing partner.

Video link: https://youtu.be/HsU6XGNsg4A
Case Packing System
Engineered for industrial-scale operations, our vision-guided robotic case packer guarantees precise loading of bottles—such as soy sauce, vinegar, and similar containers—into cartons.
Key Capabilities:
Flexible adaptation to various carton sizes, including rectangular, square, and custom dimensions.
Integrated in-line box forming and sealing, synchronized with upstream filling machines.
High throughput of 600+ units per hour with placement accuracy within ±0.5mm.
Shrink Bundling Unit
Ideal for creating multipacks for retail displays, this machine wraps products in high-clarity shrink film to enhance visual appeal while minimizing material waste. Equipped with smart thermal controls and error-detection sensors, it ensures consistent, reliable output for small-format packaging.

Video link: https://youtu.be/nqvxTBCFBhE
Palletizer Units, Stacking Pallet Feeders, and Pallet Stretch-Film Wrappers
Palletizer:
This equipment is designed to pick up film-wrapped bottle packages and systematically stack them onto pallets. Pallets are automatically supplied by a pallet feeder. Once a load is successfully stacked, it is transferred via rollers to the turntable of the pallet stretch-wrapper. A photoelectric sensor detects the pallet's arrival, triggering the turntable to rotate and wrap the load with stretch film. This process ensures stability during transportation, minimizes the risk of tipping, and facilitates easy forklift handling for delivery to distributors or retail outlets.
Palletizers are available in various configurations. Some utilize pneumatic suction for gripping, while others employ robotic arms. Structurally, models include column-style and gantry-style designs. The column-style is suitable for small to medium-scale production lines, whereas the gantry-style, with its superior stability and load-bearing capacity, is ideal for large-scale, high-volume operations.
Pallet Feeder:
The pallet feeder automates the distribution of pallets, which serve as the foundational support for stacked loads. If a customer's process requires separator boards between layers, an additional dedicated machine is necessary. While placing bottom pallets and separators can be done manually, integrating this automated equipment significantly enhances line efficiency and reduces labor costs.
Pallet Stretch-Wrapping Machine:
Pallet stretch-wrapping machines are primarily categorized into two types: rotating turntable wrappers and non-rotating swing-arm wrappers. A rotating turntable machine, where the pallet load spins on a platform, is an excellent choice for stable, standard-sized loads. However, for extremely tall loads where rotation might compromise stability, or for pallets with irregular shapes, a non-rotating swing-arm wrapper is the preferred option. This machine wraps the film around the stationary load by rotating the film carriage on a vertical arm, making it suitable for secure wrapping of high or unstable palletized goods.
